OVERVIEW

Our front wings have the best thickness-to-strength ratio on the market resulting in ultra-stiff wings with controlled flex patterns. Our production process has been optimised to have the lowest tolerances in the windsurfing industry.

• “DNA-M” for “Medium” stiffness. More power for heavy riders and lighter winds. Affordable pricing.

• “DNA-H” for stiffness level “Hard”. Maximum control in high winds, high speed runs and jibes.

• "DNA-X" is a special "H" construction (named "H" on the actual wing) when profiles get too thin for "DNA-M" layups.

SPECS

CONSTRUCTION

To protect the advantage of having the stiffest parts we won’t name any construction secrets for the AEON frontwings.

As the only brand in the history of windsurfing being able to successfully produce hollow boards in more than 20 sizes (AirInside) our know-how in composite construction technology is literally miles ahead of competitor brands. With our own production setup of “Fullcore” boards (EPS Core) we’ve set the industry’s bench mark for weight and tolerance quality of EPS production boards. With our AEON foil constructions we are leading the industry again by offering the thinnest and most high-aspect designs with the stiffest flex vs twist ratio.

All foil parts are fitted with TX30 torx screws.
All frontwings are using m8 TX30 screws to secure the frontwings to the fuselage as we've tested that m6 screws - as used by many brands - are not reliable enough.

SANDING AND WARRANTY:
All AEON carbon parts have a "clear cote finish" to look optically appealing and perfect. This coating is sealing the carbon layers. Please note that sanding off this factory coating - partially or completely - will end the product warranty and any sanding will be fully at your own risk. Sanded AEON parts will change their look from glossy to matt finish. Always get some advise and guidance from experienced racers before sanding your foil parts. There is no general need to extensively sand the AEON carbon parts as we're using a very advanced production process. Only do so if you're 100% sure about what you're doing and why you're doing it.



CONCEPT

DESIGN GOALS
Our target was to create high-performance foils with full compatibility for all foiling sports and disciplines.
We wanted this foil system to be commercially available at different price levels from the “whatever-it-takes world cup level” to the demanding needs of more price sensitive customers. The AEON has been designed for maximum control – easing the fight of mastering 3-dimensional flight for both the skilled world cup rider fighting in the pack and the indermediate rider. Having one connection system for wind-, wing-, prone- and kite-foiling is a massive economic advantage for multi sport users and allows every rider to find his perfect personal setup easily. At the same time the multi-sport option opens a much bigger market to resell AEON foil parts. The AEON will be vailable in our retail network as a complete high-performance foil system that can fulfil any waterman's wishes and needs. One system can do it all!

MAN VS. MACHINE
The massive success of the AEON-Foil in both Windsurfing AND Wing-Foiling is the result of our PATRIK R&D crew’s precise and hard work. Our products are being developed in a unique hybrid process where the human brain (knowledge) and hands (feeling) are clearly leading the computer aided design – not the other way around. Like this we’re able to design perfect products that no “A.I.” (artificial intelligence) could ever create.
Fun-Fact: CFD (computational fluid dynamic) programs are created by humans, fed with data based on past practical tests, but will never be able to calculate completely new results outside their given data range. The PATRIK-Crew is practically developing and testing gear outside that software range and our results will be used later to feed and update currently available CFD programs.

SINGLE PARTS VS. SETS
After our R&D Team had found peak performance in individual outlines and shapes they had individual wishes for flex and twist resulting in different “magic” combinations of AEON parts. Offering all parts separately gives the top riders the freedom to find their magic setup while the indermediate riders can choose the best combo for their budget.



SETUPS

"Michele Becker" PWA Slalom Setups
95 Dim-S Mast, 450 DNA-H Frontwings, 100 V2 Titaninum Fuselage, 160 Backwing in rear position +1° shim
95 Dim-S Mast, 550 DNA-H Frontwings, 100 V1 Titaninum Fuselage, 160 Backwing in rear position +1° shim

"Alex Cousin" 6.0 PWA Slalom Setup
95 Dim-S Mast, 375 DNA-H Frontwings, 100 V3 Titaninum Fuselage, 160 Backwing in rear position +1.5° shim

"Elia Colombo" 9.0 Course Racing Setup
100 Dim-L Mast, 900 DNA-H Frontwing, 110 V1 Aluminum Fuselage, 195 Backwing in rear position +1° shim

"Nico Warembourg" 4.2 DEFI Setup
95 Dim-S Mast, 375 DNA-H Frontwings, 100 V1 Titanium Fuselage, 160 Backwing in rear position +1,75° shim

"Patrik Diethelm" Freerace Setup
95 Dim-M Mast, 750 DNA-M Frontwing, 100 V1 Aluminum Fuselage, 195 Backwing in rear position +0,5° shim

Speed Foiling Setup
95 Dim-S Mast, 375 DNA-H Frontwing, 100 V3 Titaninum Fuselage, 160 Backwing in rear position +1,5° shim

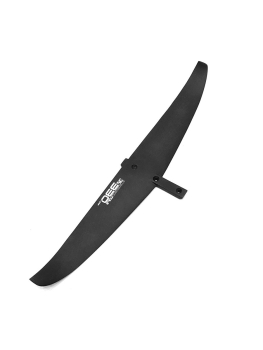

OVERVIEW

“DNA-H” (hard) only for the most stability and control in all conditions. The special profile and shape of the backwings allow us to use low angles of attack on the stabilizers without losing control and flight stability. The whole foil system is working as one. Our backwings are carefully finetuned to work best with our fuselage shapes and frontwings.

• 160: Surface 160cm2, Span 380mm, Aspect Ratio 9.03

• 195: Surface 195cm2, Span 420mm, Aspect Ratio 9.05

  (Bigger sizes for Windsurf and Wingfoil Wave / Freestyle and Freeride to come 2024.)

CONCEPT

DESIGN GOALS
Our target was to create high-performance foils with full compatibility for all foiling sports and disciplines.
We wanted this foil system to be commercially available at different price levels from the “whatever-it-takes world cup level” to the demanding needs of more price sensitive customers. The AEON has been designed for maximum control – easing the fight of mastering 3-dimensional flight for both the skilled world cup rider fighting in the pack and the indermediate rider. Having one connection system for wind-, wing-, prone- and kite-foiling is a massive economic advantage for multi sport users and allows every rider to find his perfect personal setup easily. At the same time the multi-sport option opens a much bigger market to resell AEON foil parts. The AEON will be vailable in our retail network as a complete high-performance foil system that can fulfil any waterman's wishes and needs. One system can do it all!

MAN VS. MACHINE
The massive success of the AEON-Foil in both Windsurfing AND Wing-Foiling is the result of our PATRIK R&D crew’s precise and hard work. Our products are being developed in a unique hybrid process where the human brain (knowledge) and hands (feeling) are clearly leading the computer aided design – not the other way around. Like this we’re able to design perfect products that no “A.I.” (artificial intelligence) could ever create.
Fun-Fact: CFD (computational fluid dynamic) programs are created by humans, fed with data based on past practical tests, but will never be able to calculate completely new results outside their given data range. The PATRIK-Crew is practically developing and testing gear outside that software range and our results will be used later to feed and update currently available CFD programs.

SINGLE PARTS VS. SETS
After our R&D Team had found peak performance in individual outlines and shapes they had individual wishes for flex and twist resulting in different “magic” combinations of AEON parts. Offering all parts separately gives the top riders the freedom to find their magic setup while the indermediate riders can choose the best combo for their budget.



CONSTRUCTION

To protect the advantage of having the stiffest and thinnest parts we won’t name any construction secrets used for our backwings. All foil parts are using TX40 screwheads. The backwing is being mounted with two M6 bolts.

SANDING AND WARRANTY:
All AEON carbon parts have a "clear cote finish" to look optically appealing and perfect. This coating is sealing the carbon layers. Please note that sanding off this factory coating - partially or completely - will end the product warranty and any sanding will be fully at your own risk. Always get some advise and guidance from experienced racers before sanding your foil parts. There is no general need to extensively sand the AEON carbon parts as we're using a very advanced production process. Only do so if you're 100% sure about what you're doing and why you're doing it.



SETUPS

"Michele Becker" PWA Slalom Setups
95 Dim-S Mast, 450 DNA-H Frontwings, 100 V2 Titaninum Fuselage, 160 Backwing in rear position +1° shim
95 Dim-S Mast, 550 DNA-H Frontwings, 100 V1 Titaninum Fuselage, 160 Backwing in rear position +1° shim

"Alex Cousin" 6.0 PWA Slalom Setup
95 Dim-S Mast, 375 DNA-H Frontwings, 100 V3 Titaninum Fuselage, 160 Backwing in rear position +1.5° shim

"Elia Colombo" 9.0 Course Racing Setup
100 Dim-L Mast, 900 DNA-H Frontwing, 110 V1 Aluminum Fuselage, 195 Backwing in rear position +1° shim

"Nico Warembourg" 4.2 DEFI Setup
95 Dim-S Mast, 375 DNA-H Frontwings, 100 V1 Titanium Fuselage, 160 Backwing in rear position +1,75° shim

"Patrik Diethelm" Freerace Setup
95 Dim-M Mast, 750 DNA-M Frontwing, 100 V1 Aluminum Fuselage, 195 Backwing in rear position +0,5° shim

Speed Foiling Setup
95 Dim-S Mast, 375 DNA-H Frontwing, 100 V3 Titaninum Fuselage, 160 Backwing in rear position +1,5° shim


Informationen zur EU-Verordnung über die allgemeine Produktsicherheit (GPSR)

In der EU ansässiger Wirtschaftsbeteiligter, der sicherstellt, dass das Produkt den erforderlichen Vorschriften entspricht:

Open Ocean Sports GmbH
Schleifweg 3
74257 Untereisesheim
Deutschland
Kontakt zum Ansprechpartner:
+49 7132 4024
info@open-ocean.com
http://www.open-ocean.com


Marken: PATRIK, AEON FOIL SYSTEM, THE CHASE PROJECT
Inhaber: Creaglobe GmbH
Adresse: Eichholzstrasse 27, 8808 Pfäffikon, Switzerland

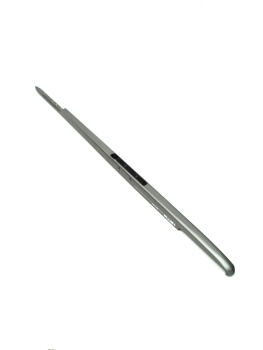

OVERVIEW

“Aluminium” beats carbon in terms of compatibility, stiffness and lightweight 3-Dimensional strength.

“Titanium” beats aluminium and carbon offering even more stiffness and allowing reduced diameter outlines with less drag and improved 3-dimensional strength.

Mast-Fuselage connection: The patent pending “Self-Lock Dual-Box” guarantees the safest and stiffest connection backed up with 2x M6 extra safety bolts.

Frontwing connection: The flat surface with a recess in the centre and 3x M8-Bolts is offering the stiffest and most reliable front wing connection available.

Backwing connection: The flat surface with a centre recess and multiple m6 inserts guarantees precise backwing trim options with a stiff and reliable connection.

SPECS

• 100cm-V1: Highest power ratio for cross-/upwind slalom in any conditions. Most lift in light winds.

• 100cm-V2: Medium power ratio for crosswind to downwind slalom in any conditions.

• 100cm-V3: Lower power ratio for downwind slalom and speed with max. control in strong winds.

• 110cm-V1: Highest power ratio for upwind/downwind course racing in any conditions.

• 110cm-V2: Medium power ratio for upwind/downwind course racing in any conditions.

  (More sizes for Windsurf Freeride and Winging Race, Wave, Freestyle to come.)


• Tail wing positions and optional angle shims:

  • 0mm -> Tail wing all the way back for most stability and control.

  • -12.5mm -> Centered tail wing for more pitch/power reactivity without changing the angle of attack.

  • -25mm -> Tail wing forward for most pitch/power reactivity without changing the angle of attack.

  • 0°, 0.5°, 1°, 1.5°, 2° (Files for shims with 0.25 steps can be downloaded)



CONCEPT

DESIGN GOALS
Our target was to create high-performance foils with full compatibility for all foiling sports and disciplines.
We wanted this foil system to be commercially available at different price levels from the “whatever-it-takes world cup level” to the demanding needs of more price sensitive customers. The AEON has been designed for maximum control – easing the fight of mastering 3-dimensional flight for both the skilled world cup rider fighting in the pack and the indermediate rider. Having one connection system for wind-, wing-, prone- and kite-foiling is a massive economic advantage for multi sport users and allows every rider to find his perfect personal setup easily. At the same time the multi-sport option opens a much bigger market to resell AEON foil parts. The AEON will be vailable in our retail network as a complete high-performance foil system that can fulfil any waterman's wishes and needs. One system can do it all!

MAN VS. MACHINE
The massive success of the AEON-Foil in both Windsurfing AND Wing-Foiling is the result of our PATRIK R&D crew’s precise and hard work. Our products are being developed in a unique hybrid process where the human brain (knowledge) and hands (feeling) are clearly leading the computer aided design – not the other way around. Like this we’re able to design perfect products that no “A.I.” (artificial intelligence) could ever create.
Fun-Fact: CFD (computational fluid dynamic) programs are created by humans, fed with data based on past practical tests, but will never be able to calculate completely new results outside their given data range. The PATRIK-Crew is practically developing and testing gear outside that software range and our results will be used later to feed and update currently available CFD programs.

SINGLE PARTS VS. SETS
After our R&D Team had found peak performance in individual outlines and shapes they had individual wishes for flex and twist resulting in different “magic” combinations of AEON parts. Offering all parts separately gives the top riders the freedom to find their magic setup while the indermediate riders can choose the best combo for their budget.


SETS

"Michele Becker" PWA Slalom Setups
95 Dim-S Mast, 450 DNA-H Frontwings, 100 V2 Titaninum Fuselage, 160 Backwing in rear position +1° shim
95 Dim-S Mast, 550 DNA-H Frontwings, 100 V1 Titaninum Fuselage, 160 Backwing in rear position +1° shim

"Alex Cousin" 6.0 PWA Slalom Setup
95 Dim-S Mast, 375 DNA-H Frontwings, 100 V3 Titaninum Fuselage, 160 Backwing in rear position +1.5° shim

"Elia Colombo" 9.0 Course Racing Setup
100 Dim-L Mast, 900 DNA-H Frontwing, 110 V1 Aluminum Fuselage, 195 Backwing in rear position +1° shim

"Nico Warembourg" 4.2 DEFI Setup
95 Dim-S Mast, 375 DNA-H Frontwings, 100 V1 Titanium Fuselage, 160 Backwing in rear position +1,75° shim

"Patrik Diethelm" Freerace Setup
95 Dim-M Mast, 750 DNA-M Frontwing, 100 V1 Aluminum Fuselage, 195 Backwing in rear position +0,5° shim

Speed Foiling Setup
95 Dim-S Mast, 375 DNA-H Frontwing, 100 V3 Titaninum Fuselage, 160 Backwing in rear position +1,5° shim

Patrik AEON Foilbag PRO

OVERVIEW

Make sure to order your accessories when you are composing your individual AEON set from single parts. Shimset, bag and screwdriver need to be ordered seperately but will be included in the complete foil sets. Protection covers are included with the masts, frontwings and backwings. All AEON screws (m6 and m8) use the TX40 head. Tuttle box screw length will vary according to the board you are using and for that reason are not included with AEON the foil. Always make sure your tuttle box screws are long enough and fully use the thread lengths of the inserts.

CONCEPT

DESIGN GOALS
Our target was to create high-performance foils with full compatibility for all foiling sports and disciplines.
We wanted this foil system to be commercially available at different price levels from the “whatever-it-takes world cup level” to the demanding needs of more price sensitive customers. The AEON has been designed for maximum control – easing the fight of mastering 3-dimensional flight for both the skilled world cup rider fighting in the pack and the indermediate rider. Having one connection system for wind-, wing-, prone- and kite-foiling is a massive economic advantage for multi sport users and allows every rider to find his perfect personal setup easily. At the same time the multi-sport option opens a much bigger market to resell AEON foil parts. The AEON will be vailable in our retail network as a complete high-performance foil system that can fulfil any waterman's wishes and needs. One system can do it all!

MAN VS. MACHINE
The massive success of the AEON-Foil in both Windsurfing AND Wing-Foiling is the result of our PATRIK R&D crew’s precise and hard work. Our products are being developed in a unique hybrid process where the human brain (knowledge) and hands (feeling) are clearly leading the computer aided design – not the other way around. Like this we’re able to design perfect products that no “A.I.” (artificial intelligence) could ever create.
Fun-Fact: CFD (computational fluid dynamic) programs are created by humans, fed with data based on past practical tests, but will never be able to calculate completely new results outside their given data range. The PATRIK-Crew is practically developing and testing gear outside that software range and our results will be used later to feed and update currently available CFD programs.

SINGLE PARTS VS. SETS
After our R&D Team had found peak performance in individual outlines and shapes they had individual wishes for flex and twist resulting in different “magic” combinations of AEON parts. Offering all parts separately gives the top riders the freedom to find their magic setup while the indermediate riders can choose the best combo for their budget.


Informationen zur EU-Verordnung über die allgemeine Produktsicherheit (GPSR)

In der EU ansässiger Wirtschaftsbeteiligter, der sicherstellt, dass das Produkt den erforderlichen Vorschriften entspricht:

Open Ocean Sports GmbH
Schleifweg 3
74257 Untereisesheim
Deutschland
Kontakt zum Ansprechpartner:
+49 7132 4024
info@open-ocean.com
http://www.open-ocean.com


Marken: PATRIK, AEON FOIL SYSTEM, THE CHASE PROJECT
Inhaber: Creaglobe GmbH
Adresse: Eichholzstrasse 27, 8808 Pfäffikon, Switzerland

• The brandnew Evolution fuselages remove the front bulb to enhance water flow, maximise front wing efficiency and reduce drag. Your foil cuts through water smoother, faster and effortlessly.
• The new mini-bridge for the front wing saddle adds stiffness for more flight control.
• The tail wing saddle and the mast mounting sections remain unchanged, so tail wings and masts from the Original generation and the Plus generation remain compatible.

• The brandnew Evolution fuselages remove the front bulb to enhance water flow, maximise front wing efficiency and reduce drag. Your foil cuts through water smoother, faster and effortlessly.
• The new mini-bridge for the front wing saddle adds stiffness for more flight control.
• The tail wing saddle and the mast mounting sections remain unchanged, so tail wings and masts from the Original generation and the Plus generation remain compatible.

• The brandnew Evolution fuselages remove the front bulb to enhance water flow, maximise front wing efficiency and reduce drag. Your foil cuts through water smoother, faster and effortlessly.
• The new mini-bridge for the front wing saddle adds stiffness for more flight control.
• The tail wing saddle and the mast mounting sections remain unchanged, so tail wings and masts from the Original generation and the Plus generation remain compatible.
